Creating Timeseries with NLDAS-3 Sample Data
Run this notebook
You can launch this notebook in VEDA JupyterHub by clicking the link below.
Launch in VEDA JupyterHub (requires access)
Learn more
Inside the Hub
This notebook was written on the VEDA JupyterHub and as such is designed to be run on a jupyterhub which is associated with an AWS IAM role which has been granted permissions to the VEDA data store via its bucket policy. The instance used provided 16GB of RAM.
See (VEDA Analytics JupyterHub Access)[https://nasa-impact.github.io/veda-docs/veda-jh-access.html] for information about how to gain access.
Outside the Hub
The data is in a protected bucket. Please request access by emailng aimee@developmentseed.org or alexandra@developmentseed.org and providing your affiliation, interest in or expected use of the dataset and an AWS IAM role or user Amazon Resource Name (ARN). The team will help you configure the cognito client.
You should then run:
%run -i 'cognito_login.py'
About the Data
NLDAS is a widely used land modeling environment that generates estimates of land surface fluxes and states such as soil moisture, snow, and streamflow. These estimates are critical for drought and flood monitoring, water availability and water resource management, climate assessments, and other uses. NLDAS-3 is the next generation version of NLDAS-2, and offers significant improvements such as improved spatial resolution (12.5km to 1km), expanded domain (CONUS to North and Central America), reduced data latency (3.5 days to near real-time), and assimilation of NASA remote sensing data, among others. (see Earthdata VEDA Data Story). Please note that the NLDAS-3 precipitation data provided here is a sample dataset still in development, and will not be the final NLDAS-3 product when it is released.
This notebook is intended to visualize the sample NLDAS-3 monthly-averaged precipitation forcing data via a timeseries.
Using the VEDA STAC to Create a Timeseries
If you need to do analysis over an AOI you can do so via Project VEDA’s STAC.
Approach
- Define the URL where the data is stored.
- Make sure the dataset is the size we expected.
- Define an Area of Interest.
- Retrieve the dataset’s statistics for the AOI.
- Plot the relevant statistic.
Querying the STAC API
The metadata and derived data products can be accessed without credentials via STAC API and Raster API respectively.
= "https://openveda.cloud/api/stac"
STAC_API_URL = "https://openveda.cloud/api/raster" RASTER_API_URL
The collection name is used to fetch the dataset from the STAC API. First, we define the collection name as a variable.
Note: You can discover available collections via the STAC Browser: http://openveda.cloud
= "nldas3" collection_id
Use pystac_client
to search the STAC collection for that collection.
= Client.open(STAC_API_URL)
catalog
= catalog.search(collections=[collection_id], limit=300)
search
= search.item_collection()
item_collection print(f"Found {len(item_collection)} items")
Found 252 items
Define an AOI
Let’s create a bounding box to explore the area of interest (AOI) in Texas. In this example we will use geojson to construct a Polygon
geometry representing the bounding box. For bounding boxes it is often simpler to use a bounding box (list of 4 floats) instead. This example demonstrates how you can construct more complicated geometries.
= {
texas_dallas_aoi "type": "Feature",
"properties": {},
"geometry": {
"coordinates": [
[# [longitude, latitude]
-96.1, 32.28], # Southeast Bounding Coordinate
[-96.1, 33.28], # Northeast Bounding Coordinate
[-97.58, 33.28], # Northwest Bounding Coordinate
[-97.58, 32.28], # Southwest Bounding Coordinate
[-96.1, 32.28] # Closing the polygon at the Southeast Bounding Coordinate
[
]
],"type": "Polygon",
}, }
Let’s visualize the AOI we have just created using folium
= folium.Map(
aoi_map ="OpenStreetMap",
tiles=[32.81,-96.93], # centered on Dallas, Texas area
location=9, # zoom in or out by increasing or decreasing the value here
zoom_start
)
="Texas, Dallas").add_to(aoi_map)
folium.GeoJson(texas_dallas_aoi, name
aoi_map
Add the AOI to the STAC Query
Use shapely to construct a bounding box from the defined polygon and include that in the STAC search parameters.
= shapely.from_geojson(json.dumps(texas_dallas_aoi)).bounds
bbox
= catalog.search(collections=[collection_id], bbox=bbox, limit=300)
search
= search.item_collection()
item_collection print(f"Found {len(item_collection)} items")
Found 252 items
Note in this case we got the same number of items as before. This means that all the items in the catalog overlap the bounding box in question. So in this case it wasn’t strictly necessary to add the bbox to the search parameters, but it is still best practice to do as much filtering as possible at every step to minimize data transfer and compute requirements.
Now let’s take a closer look at one of these items:
0] item_collection[
- type "Feature"
- stac_version "1.1.0"
stac_extensions[] 2 items
- 0 "https://stac-extensions.github.io/raster/v1.1.0/schema.json"
- 1 "https://stac-extensions.github.io/projection/v2.0.0/schema.json"
- id "nldas3_LIS_HIST_202112"
geometry
- type "Polygon"
coordinates[] 1 items
0[] 5 items
0[] 2 items
- 0 -168.98000671647551
- 1 7.019999961559591
1[] 2 items
- 0 -51.93999145246978
- 1 7.019999961559591
2[] 2 items
- 0 -51.93999145246978
- 1 72.06000091582078
3[] 2 items
- 0 -168.98000671647551
- 1 72.06000091582078
4[] 2 items
- 0 -168.98000671647551
- 1 7.019999961559591
bbox[] 4 items
- 0 -168.98000671647551
- 1 7.019999961559591
- 2 -51.93999145246978
- 3 72.06000091582078
properties
- end_datetime "2021-12-31T00:00:00+00:00"
- start_datetime "2021-12-01T00:00:00+00:00"
- datetime None
links[] 5 items
0
- rel "collection"
- href "https://openveda.cloud/api/stac/collections/nldas3"
- type "application/json"
1
- rel "parent"
- href "https://openveda.cloud/api/stac/collections/nldas3"
- type "application/json"
2
- rel "root"
- href "https://openveda.cloud/api/stac"
- type "application/json"
- title "VEDA (Visualization, Exploration, and Data Analysis) STAC API"
3
- rel "self"
- href "https://openveda.cloud/api/stac/collections/nldas3/items/nldas3_LIS_HIST_202112"
- type "application/geo+json"
4
- rel "preview"
- href "https://openveda.cloud/api/raster/collections/nldas3/items/nldas3_LIS_HIST_202112/map?assets=cog_default&rescale=0%2C200&colormap_name=magma"
- type "text/html"
- title "Map of Item"
assets
cog_default
- href "s3://veda-data-store/nldas3/nldas3_LIS_HIST_202112.tif"
- type "image/tiff; application=geotiff"
- title "Default COG Layer"
- description "Cloud optimized default layer to display on map"
proj:bbox[] 4 items
- 0 -168.98000671647551
- 1 7.019999961559591
- 2 -51.93999145246978
- 3 72.06000091582078
- proj:wkt2 "GEOGCS["WGS 84",DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]],AUTHORITY["EPSG","6326"]],PRIMEM["Greenwich",0,AUTHORITY["EPSG","8901"]],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]],AXIS["Latitude",NORTH],AXIS["Longitude",EAST],AUTHORITY["EPSG","4326"]]"
proj:shape[] 2 items
- 0 1626
- 1 2926
raster:bands[] 1 items
0
- scale 1.0
- nodata -9999.0
- offset 0.0
- sampling "area"
- data_type "float32"
histogram
- max 725.8435668945312
- min -3.8498709201812744
- count 11
buckets[] 10 items
- 0 206646
- 1 54692
- 2 8434
- 3 3169
- 4 1430
- 5 359
- 6 53
- 7 23
- 8 4
- 9 3
statistics
- mean 49.736624541051555
- stddev 51.32641735303935
- maximum 725.8435668945312
- minimum -3.8498709201812744
- valid_percent 47.08281935307018
proj:geometry
- type "Polygon"
coordinates[] 1 items
0[] 5 items
0[] 2 items
- 0 -168.98000671647551
- 1 7.019999961559591
1[] 2 items
- 0 -51.93999145246978
- 1 7.019999961559591
2[] 2 items
- 0 -51.93999145246978
- 1 72.06000091582078
3[] 2 items
- 0 -168.98000671647551
- 1 72.06000091582078
4[] 2 items
- 0 -168.98000671647551
- 1 7.019999961559591
proj:projjson
id
- code 4326
- authority "EPSG"
- name "WGS 84"
- type "GeographicCRS"
datum
- name "World Geodetic System 1984"
- type "GeodeticReferenceFrame"
ellipsoid
- name "WGS 84"
- semi_major_axis 6378137
- inverse_flattening 298.257223563
- $schema "https://proj.org/schemas/v0.7/projjson.schema.json"
coordinate_system
axis[] 2 items
0
- name "Geodetic latitude"
- unit "degree"
- direction "north"
- abbreviation "Lat"
1
- name "Geodetic longitude"
- unit "degree"
- direction "east"
- abbreviation "Lon"
- subtype "ellipsoidal"
proj:transform[] 9 items
- 0 0.04000000521668002
- 1 0.0
- 2 -168.98000671647551
- 3 0.0
- 4 -0.0400000005868765
- 5 72.06000091582078
- 6 0.0
- 7 0.0
- 8 1.0
- proj:code "EPSG:4326"
roles[] 2 items
- 0 "data"
- 1 "layer"
rendered_preview
- href "https://openveda.cloud/api/raster/collections/nldas3/items/nldas3_LIS_HIST_202112/preview.png?assets=cog_default&rescale=0%2C200&colormap_name=magma"
- type "image/png"
- title "Rendered preview"
- rel "preview"
roles[] 1 items
- 0 "overview"
- collection "nldas3"
Get statistics with the Raster API
Create a function that retrieves information regarding a specific granule (an item) using its asset name and raster identifier and generates the statistics for it.
This function will make a POST request to the Raster API to submit the data associated with the item of interest (specific observation) within the Dallas, TX boundaries to compute its statistics.
def generate_stats(item, geojson):
""" For a given item and geojson, return a dictionary containing the computed
statistics along with the item's datetime information
"""
= requests.post(
response f"{RASTER_API_URL}/cog/statistics",
={"url": item.assets["cog_default"].href},
params=geojson,
json
)
# If anything goes wrong with this request, output error contents
assert response.ok, response.text
= response.json()
result
return {
**result["properties"]["statistics"]["b1"],
"datetime": item.properties["end_datetime"],
}
Let’s try our new function out with just one item. We’ll use %%time
to see how long it takes to run.
%%time
0], texas_dallas_aoi) generate_stats(item_collection[
CPU times: user 4.92 ms, sys: 341 µs, total: 5.26 ms
Wall time: 405 ms
{'min': 5.5441460609436035,
'max': 40.02827072143555,
'mean': 18.9648380279541,
'count': 925.0999755859375,
'sum': 17544.37109375,
'std': 7.4039084036512905,
'median': 18.58078956604004,
'majority': 5.5441460609436035,
'minority': 5.5441460609436035,
'unique': 964.0,
'histogram': [[72, 155, 139, 161, 148, 120, 76, 56, 22, 15],
[5.5441460609436035,
8.992558479309082,
12.440971374511719,
15.889383316040039,
19.33779525756836,
22.78620719909668,
26.234621047973633,
29.683032989501953,
33.131446838378906,
36.579856872558594,
40.02827072143555]],
'valid_percent': 97.57,
'masked_pixels': 24.0,
'valid_pixels': 964.0,
'percentile_2': 6.959613800048828,
'percentile_98': 35.4062614440918,
'datetime': '2021-12-31T00:00:00+00:00'}
This took about 0.5 seconds which means if we run it on every item in the collection we should expect it to take about 2 minutes.
We can run it that way if we want. It’ll look like:
stats = [ generate_stats(item, texas_dallas_aoi) for item in item_collection]
Speed things up: parallelize computation with Dask
We can drastically reduce the time it takes to generate the timeseries, by parallelizing our code. The cogs/statistics
API is powered by AWS Lambda which executes each request in a separate instance. This means the requests are highly scalable. Since each statistics request is for a single timestamp, we can request statistics for multiple timesteps concurrently, and greatly reduce the amount of time needed. We will demonstrate this by using the Dask.
Submit work
First we will create a Dask client. In this case we will use the threads on the same server that is running this jupyter notebook.
We will submit the generate_stats
function for each item in our collection and collect a list of futures. This will immediately kick off work in dask. We can then gather all the results as they finish up so that we end up with a list of dictionaries.
%%time
import dask.distributed
with dask.distributed.Client() as client:
= [
futures
client.submit(generate_stats, item, texas_dallas_aoi)for item in item_collection
]= client.gather(futures) stats
CPU times: user 3.04 s, sys: 246 ms, total: 3.29 s
Wall time: 25.4 s
The performance improvement vs a normal loop depends on how many threads dask has access to. In this case it took 25 seconds, or about 4 times faster than running them one by one in a loop.
Construct a dataframe
Now we can take that list of dictionaries and turn it into a pandas DataFrame.
= pd.DataFrame(stats) df
Make sure datetime is a valid pandas datetime
"datetime"] = pd.to_datetime(df["datetime"]) df[
Let’s take a look at the first 5 rows. Change the number 5 to show more.
5) df.head(
min | max | mean | count | sum | std | median | majority | minority | unique | histogram | valid_percent | masked_pixels | valid_pixels | percentile_2 | percentile_98 | datetime | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 5.544146 | 40.028271 | 18.964838 | 925.099976 | 17544.371094 | 7.403908 | 18.580790 | 5.544146 | 5.544146 | 964.0 | [[72, 155, 139, 161, 148, 120, 76, 56, 22, 15]... | 97.57 | 24.0 | 964.0 | 6.959614 | 35.406261 | 2021-12-31 00:00:00+00:00 |
1 | 29.220421 | 90.284607 | 57.790234 | 925.099976 | 53461.742188 | 13.098977 | 59.066620 | 29.220421 | 29.220421 | 964.0 | [[54, 83, 115, 113, 133, 161, 166, 108, 24, 7]... | 97.57 | 24.0 | 964.0 | 32.481430 | 80.630257 | 2021-11-30 00:00:00+00:00 |
2 | 71.620056 | 130.268082 | 95.405159 | 925.099976 | 88259.312500 | 9.503741 | 93.906479 | 71.620056 | 71.620056 | 964.0 | [[10, 52, 171, 316, 201, 106, 50, 23, 29, 6], ... | 97.57 | 24.0 | 964.0 | 80.306641 | 120.759964 | 2021-10-31 00:00:00+00:00 |
3 | 13.006416 | 28.573898 | 18.290234 | 925.099976 | 16920.294922 | 3.538529 | 17.590103 | 13.006416 | 13.006416 | 964.0 | [[133, 241, 116, 110, 102, 102, 74, 65, 17, 4]... | 97.57 | 24.0 | 964.0 | 13.719144 | 25.504732 | 2021-09-30 00:00:00+00:00 |
4 | 80.948761 | 148.701004 | 109.796944 | 925.099976 | 101573.148438 | 13.211540 | 106.925323 | 80.948761 | 80.948761 | 964.0 | [[29, 70, 175, 254, 145, 101, 78, 71, 33, 8], ... | 97.57 | 24.0 | 964.0 | 86.764038 | 137.815720 | 2021-08-31 00:00:00+00:00 |
Visualizing the Data as a Time Series

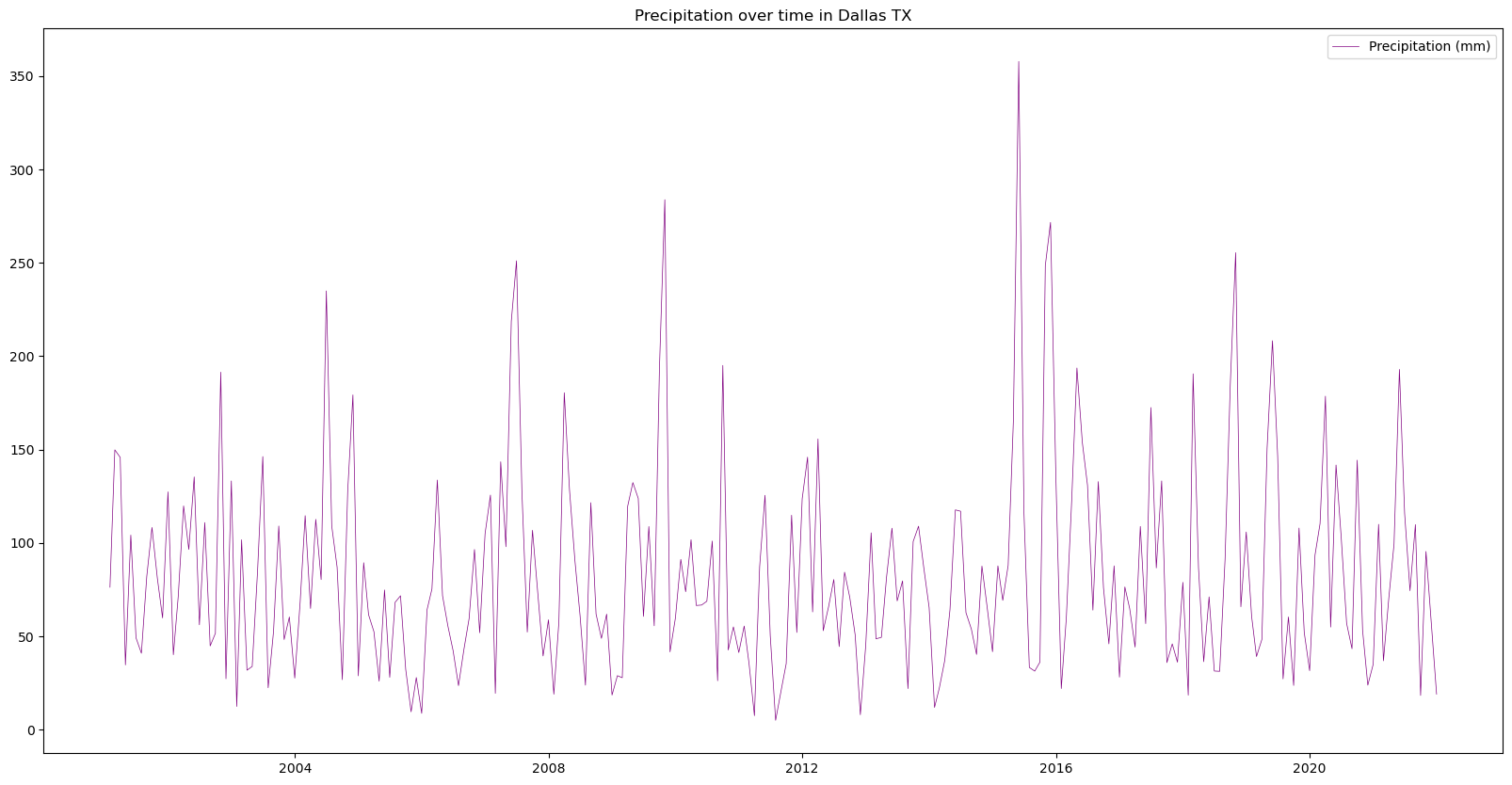

Plot the time series analysis of the monthly mean precipitation Dallas, Texas to explore changes over time.
# Figure size: 20 representing the width, 10 representing the height
= plt.figure(figsize=(20, 10))
fig
plt.plot("datetime"], # X-axis: datetime
df["mean"], # Y-axis: Precipitation value
df[="purple", # Line color
color="-", # Line style
linestyle=0.5, # Line width
linewidth="Precipitation (mm)", # Legend label
label
)
'Precipitation over time in Dallas TX')
plt.title(
# Display legend
plt.legend()
plt.show()
